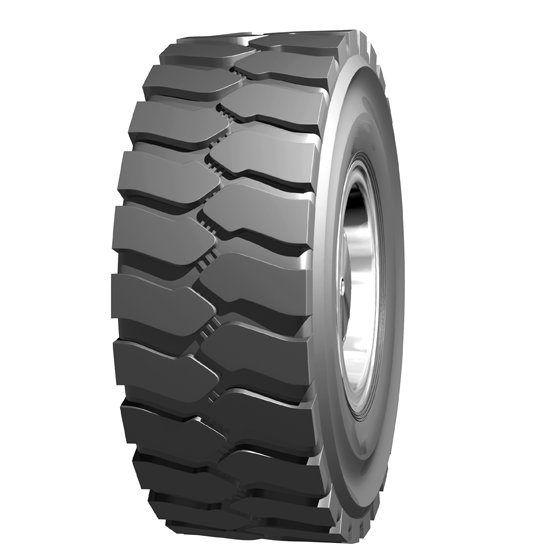

1.This deep tread particularly suitable for loaders and dump trucks operating in quarry or mining.
2.Unique non-directional traction pattern ensures optimum traction and prolongs tread life.
3.Superior sidewall cut resistance.
4.Good self-cleaning with groove stone ejector.
Size | STAR RATING | TYPE | TRA CODE | STANDARD RIM | TREAD DEPTH (mm) | LOAD INDEX | SECTION WIDTH (mm) | OVERALL DIAMETER (mm) | MAXIMUM LOAD& INFLATION PRESSURE (kg/kpa) | |
50km/h | 10km/h | |||||||||
| 35/65R33 | ★★ | TL | E-4 | 28.00/3.5 | 62.5 | 207B | 890 | 2075 | 17500/475 | |
| ★★ | TL | L-4 | 28.00/3.5 | 62.5 | 224A2 | 890 | 2075 | 28000/650 | ||
| ★★★★ | TL | E-4 | 28.00/3.5 | 62.5 | 225A2 | 890 | 2075 | 29000/800 | ||
| 20.5R25 | ★★ | TL | L-5 | 17.00/2.0 | 68 | 193A2 | 521 | 1548 | 11500/650 | |
| 23.5R25 | ★★ | TL | L-5 | 19.5/2.5 | 76 | 201A2 | 597 | 1673 | 14500/650 | |
| 26.5R25 | ★★ | TL | L-5 | 22.00/3.0 | 86 | 209A2 | 673 | 1798 | 18500/650 | |
